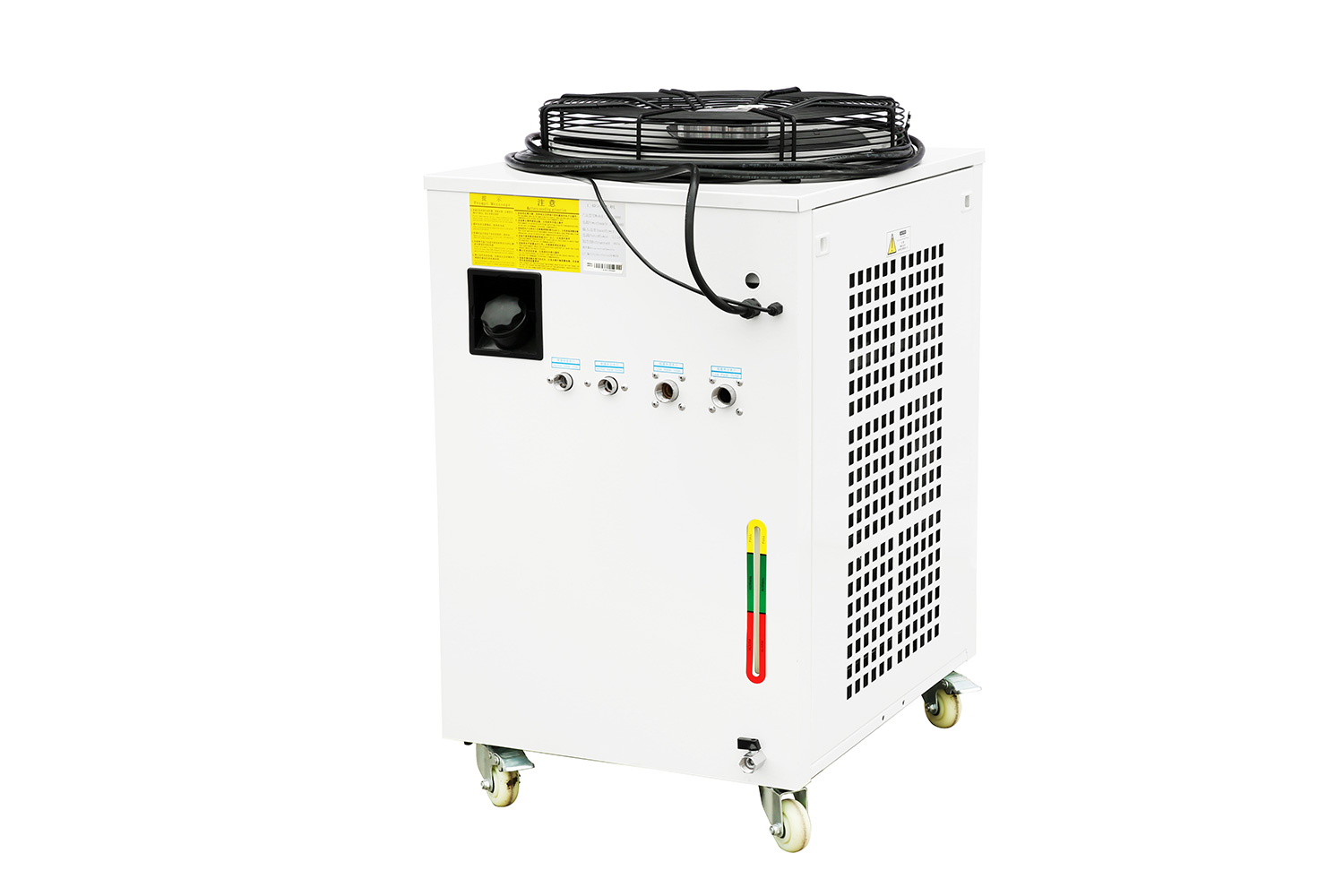

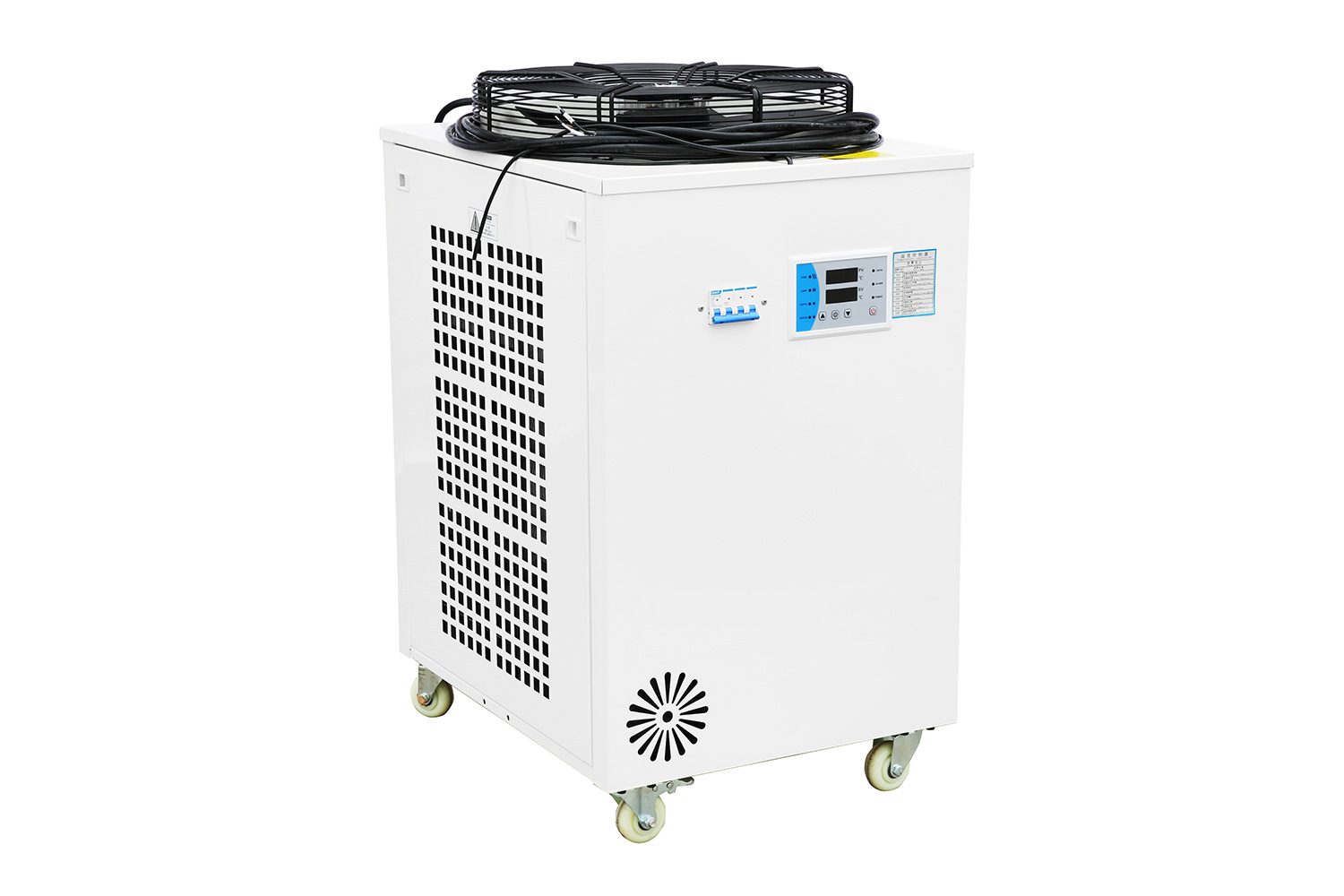

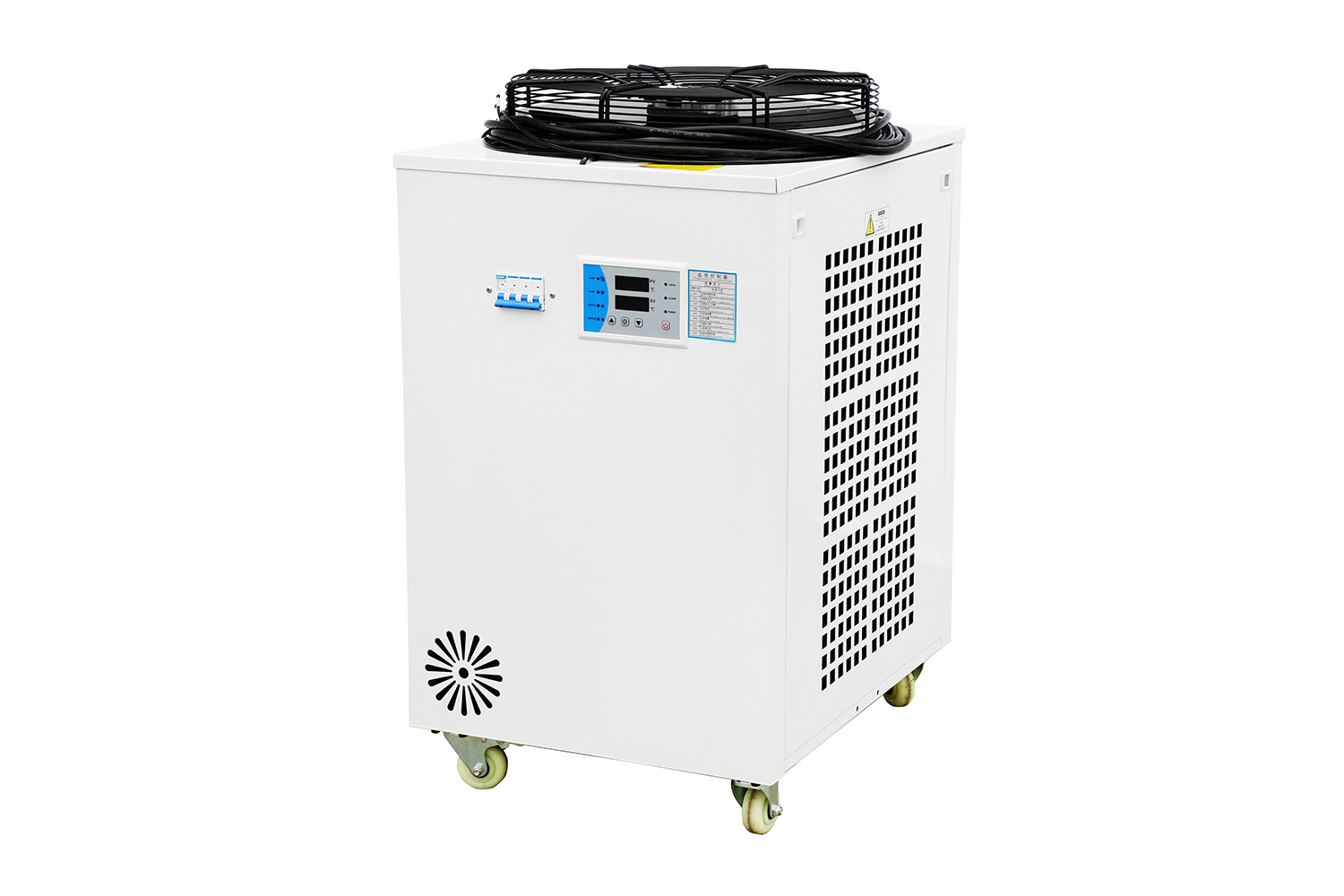

JLFL-6000 Fiber laser chiller

JLFL-6000 Fiber laser chiller

1. Customized for 6000W fiber lasers, it minimizes water temperature fluctuations to ensure stable output and extend laser lifespan.
2. Features dual-zone temperature control: high-temperature zone for cooling cutting heads, low-temperature zone for laser cooling. Compatible with high-power laser cutters and Modbus-485 communication for smart temperature monitoring.
3. Optional eco-friendly refrigerant. Includes multiple settings, fault display, and comprehensive protection with compressor delay/overcurrent alarms.
4. Compatible with global power standards and certified with ISO9001, etc. Offers reliable cooling and user-friendly operation.
5. Optional heater and water purification units .
  • Energy Saving

  • Over Temp Alarm

  • Overcurrent Protection For compressor

  • Flow Alarm

  • Dual Temp Control

JLFL/JLTL Fiber Laser Chiler Selection Guide:
MODEL Temperature Precision Rate Flow Max.Pump Pressure Refrigerant Applicable fiber laser power
JLFL-1000 ±1℃ 1.5L/min+>10L/min 30M R-410A 1000W
JLFL-1500 ±1℃ 1.5L/min+>12L/min 30M R-410A 1500W
JLFL-2000 ±1℃ 1.5L/min+>20L/min 40M R-410A 2000W
JLFL-3000 ±1℃ 1.5L/min+>25L/min 43M R-410A 3000W
JLFL-4000 ±1℃ 2L/min+>40L/min 59~61.5M R-410A 4000W
JLFL-6000 ±1℃ 1.5L/min+>50L/min 59~61.5M R-410A 6000W
JLFL-8000 ±1℃ 2.5L/min+>65L/min 59~61.5M R-410A 8000W
JLFL-12000 ±1℃ 2.5L/min+>100L/min 75~79M R-410A 12000W
JLFL-20000 ±1.5℃ 5L/min+>150L/min 58~85M R-410A 20000W
JLFL-30000 ±1.5℃ 10L/min+>300L/min 81~85M R-410A 30000W
JLFL-40000 ±1.5℃ 10L/min+>400L/min 81~85M R-410A 40000W
JLFL-60000 ±1.5℃ 10L/min+>600L/min 59.5~70M R-410A 60000W
JLFL-80000 ±1.5℃ H:10L/min L:>800L/min H:54M L:70M R-410A 80000W
JLFL-120000 ±1.5℃ 10L/min+>600L/min 70M R-410A 120000W
JLFL-160000 ±1.5℃ H:10L/min L:>800L/min H:54M L:70M R-410A 160000W
JLTL-1500 ±1℃ 2L/min+>12L/min 30M R-410A 1000W-1500W
JLTL-2000 ±1℃ 2L/min+>15L/min 40M R-410A 2000W
JLTL-3000 ±1℃ 2L/min+>25L/min 43M R-410A 3000W
JLFL-1500ANW ±1℃ 1.5L/min+>15L/min 30M R-410A 1000W-1500W
JLFL-2000ANW ±1℃ 1.5L/min+>15L/min 40M R-410A 2000W
JLFL-3000ANW ±1℃ 2L/min+>20L/min 43M R-410A 3000W
JLFL-6000ANW ±1℃ 2L/min+>67L/min 59~61.5M R-410A 6000W
Product Parameters
MODELJLFL-6000
Working VoltageAC 3PH 380V
Working Current2.7-14A
Working Frequency50HZ
Rated Power5050W
RefrigerantR410a
Water Pump Voltage & Power220v/750W
Max. Head47M
Max. Flow Rate4m³/h
Water Inlet/Outlet PortRp1/2"*Rp3/4"
Cooling Water Tank Max Capacity45L
Chiller Dimensions (L*W*H)750*570*1020mm
Outer Packaging Dimensions (L*W*H)780*590*1160mm
Net Weight100KG
Gross Weight110KG
Note: The technical parameter information of the products on this site is for reference only and is subject to the final product as delivered.
