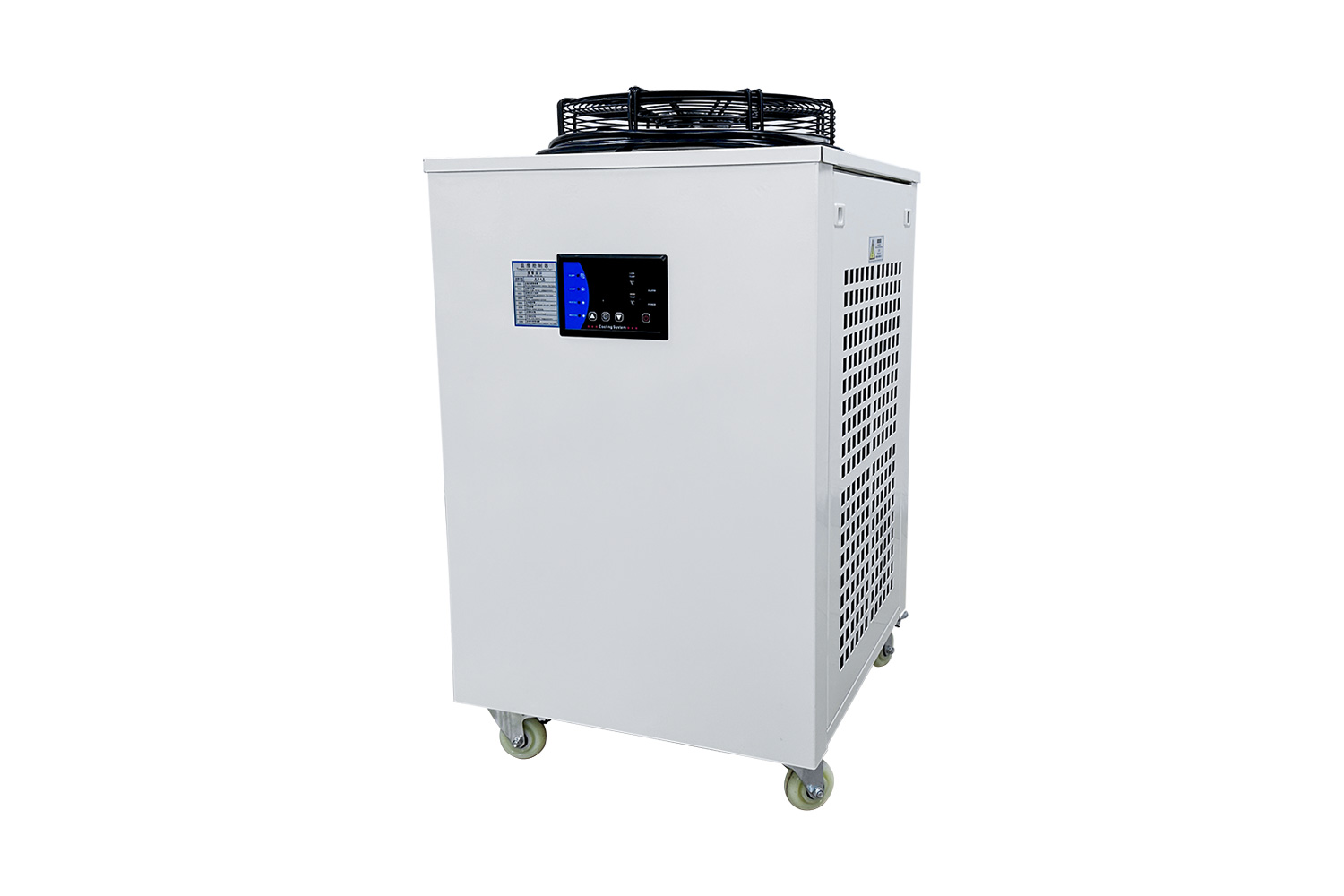

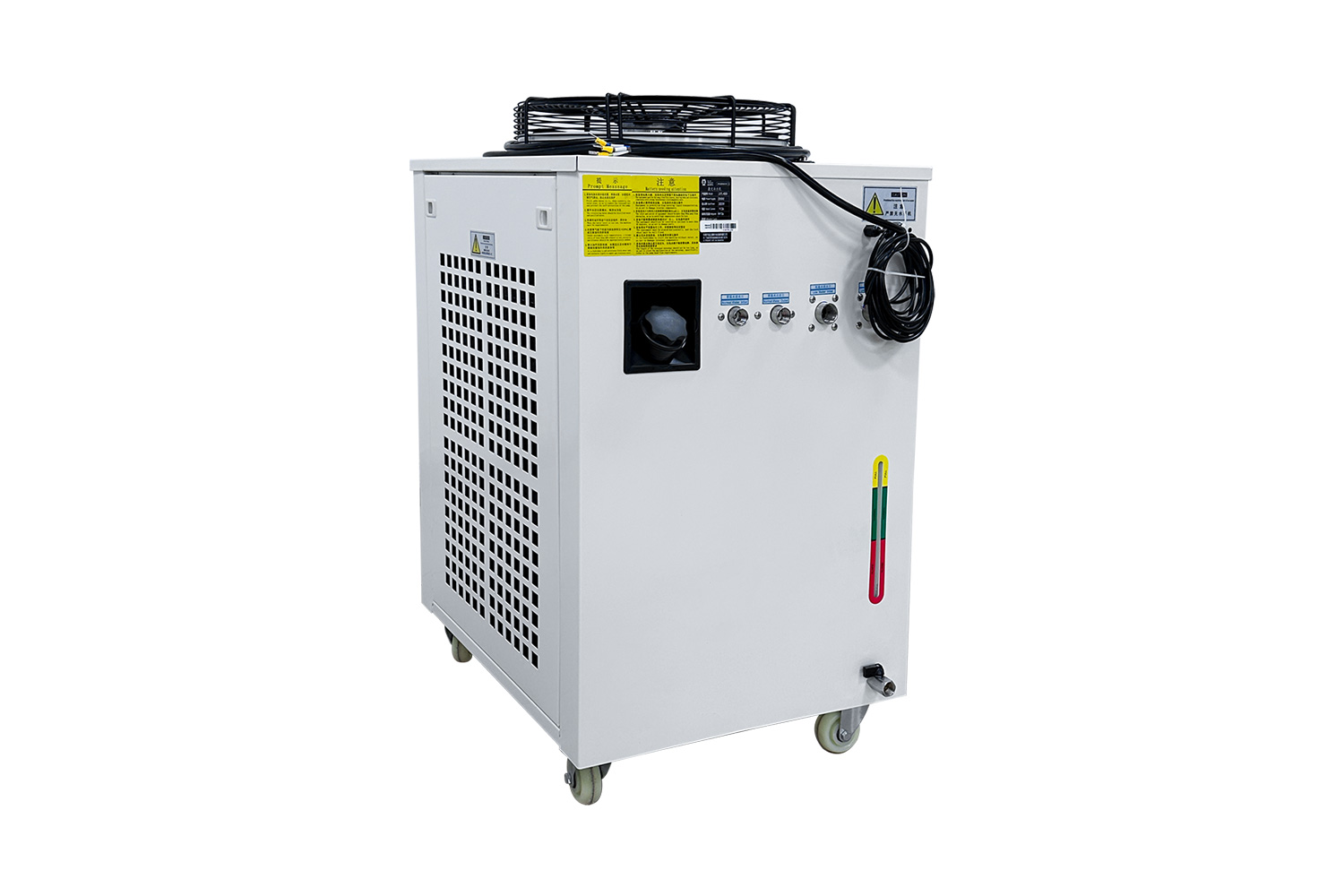

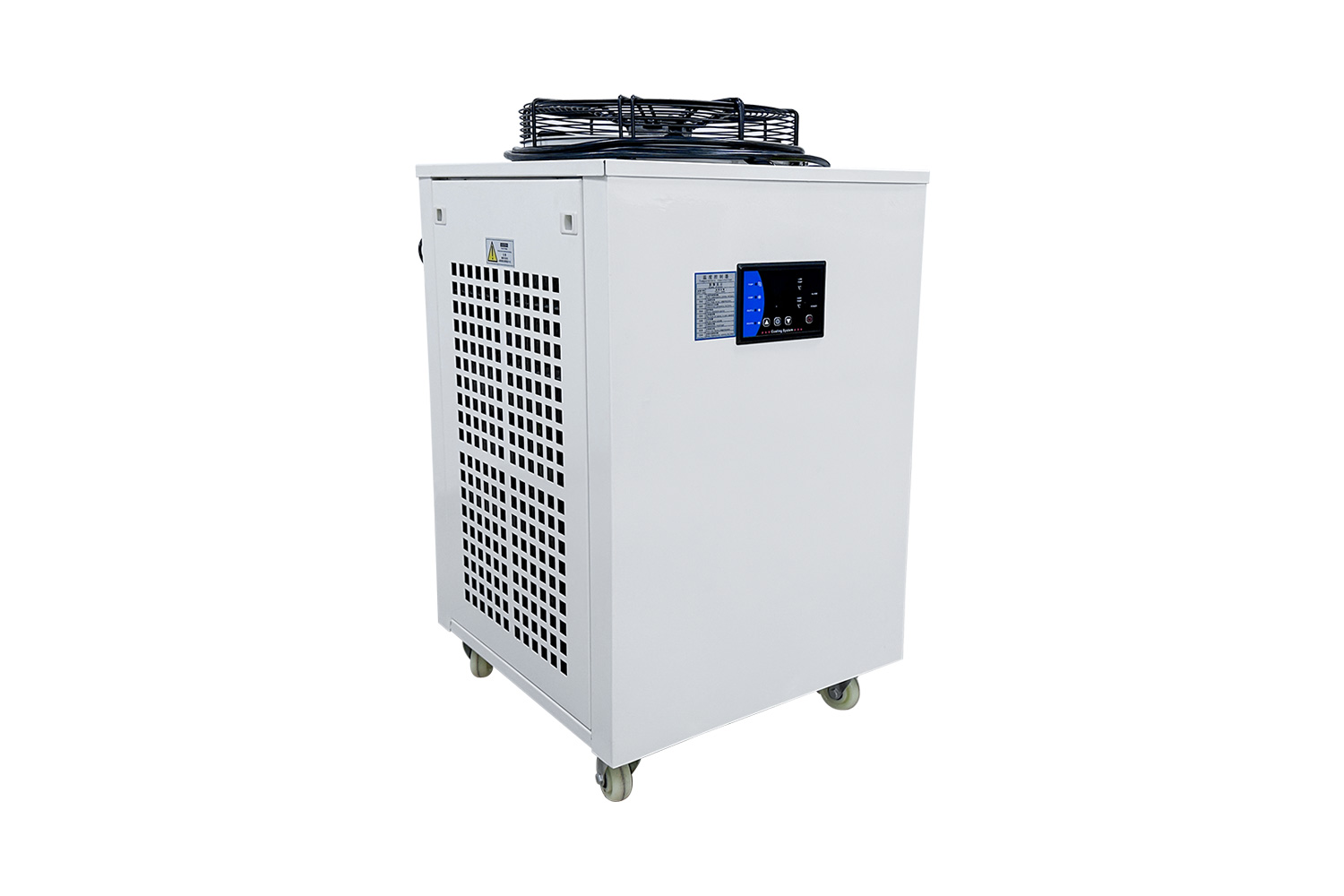

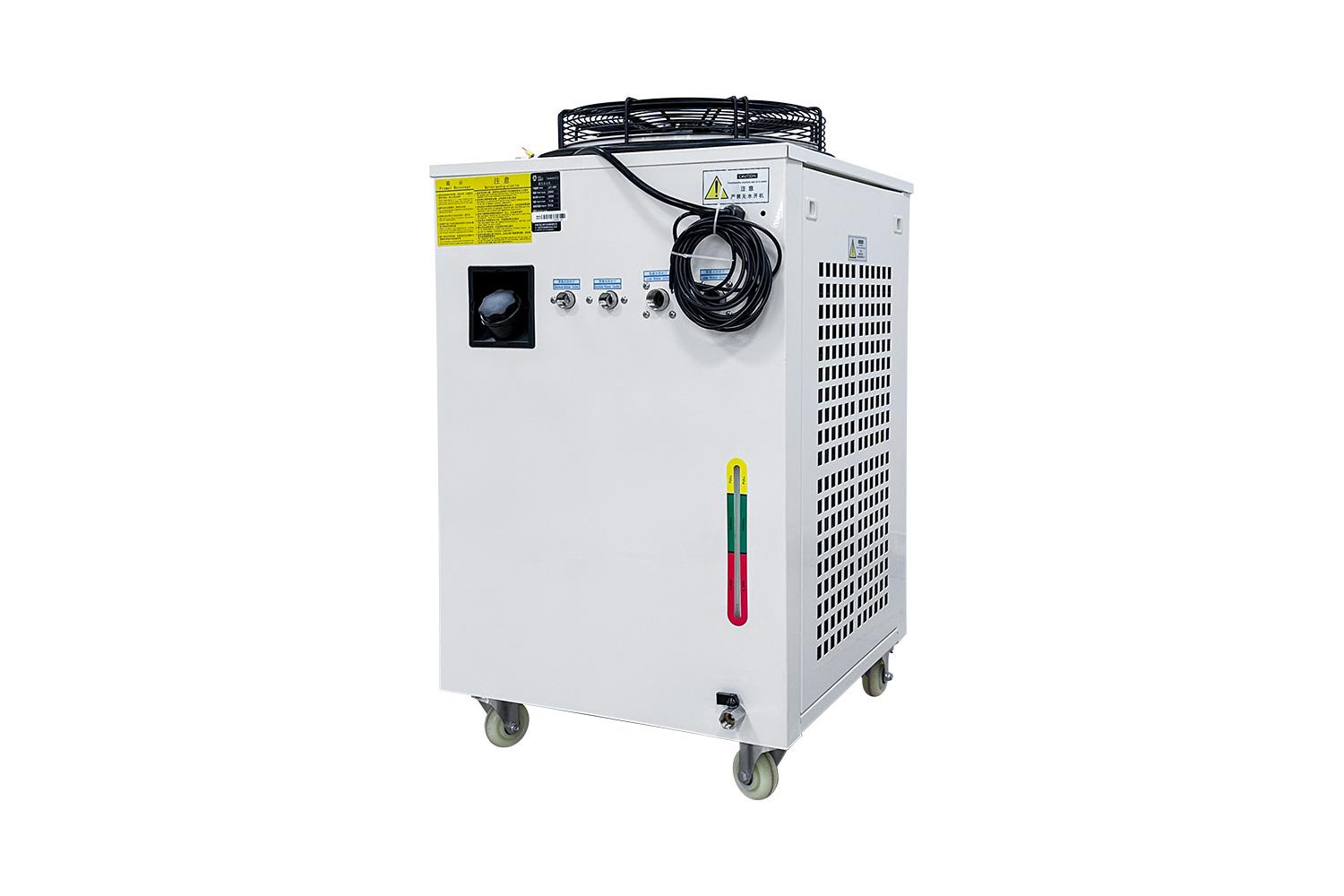

JLFL-4000 Fiber laser chiller

1. Designed for 4000W fiber lasers: dual-temperature control system for separate cooling of laser head and laser source.
2. Mobility with universal casters; visual water level indicator and drainage for easy maintenance; eco-friendly refrigerant support.
3. Optional ModBus-485 communication and fault display; five-layer protection including compressor delay/overcurrent, water flow, and temperature alarms.
4. Global power compatibility; ISO9001, CE, RoHS certified; stable cooling and easy operation.
5. Optional heater and water purification modules for efficient laser processing cooling solutions.

Energy Saving
Over Temp Alarm
Overcurrent Protection For compressor
Flow Alarm
Dual Temp Control

JLFL/JLTL Fiber Laser Chiler Selection Guide:

MODEL	Temperature Precision	Rate Flow	Max.Pump Pressure	Refrigerant	Applicable fiber laser power
JLFL-1000	±1℃	1.5L/min+>10L/min	30M	R-410A	1000W
JLFL-1500	±1℃	1.5L/min+>12L/min	30M	R-410A	1500W
JLFL-2000	±1℃	1.5L/min+>20L/min	40M	R-410A	2000W
JLFL-3000	±1℃	1.5L/min+>25L/min	43M	R-410A	3000W
JLFL-4000	±1℃	2L/min+>40L/min	59~61.5M	R-410A	4000W
JLFL-6000	±1℃	1.5L/min+>50L/min	59~61.5M	R-410A	6000W
JLFL-8000	±1℃	2.5L/min+>65L/min	59~61.5M	R-410A	8000W
JLFL-12000	±1℃	2.5L/min+>100L/min	75~79M	R-410A	12000W
JLFL-20000	±1.5℃	5L/min+>150L/min	58~85M	R-410A	20000W
JLFL-30000	±1.5℃	10L/min+>300L/min	81~85M	R-410A	30000W
JLFL-40000	±1.5℃	10L/min+>400L/min	81~85M	R-410A	40000W
JLFL-60000	±1.5℃	10L/min+>600L/min	59.5~70M	R-410A	60000W
JLFL-80000	±1.5℃	H:10L/min L:>800L/min	H:54M L:70M	R-410A	80000W
JLFL-120000	±1.5℃	10L/min+>600L/min	70M	R-410A	120000W
JLFL-160000	±1.5℃	H:10L/min L:>800L/min	H:54M L:70M	R-410A	160000W
JLTL-1500	±1℃	2L/min+>12L/min	30M	R-410A	1000W-1500W
JLTL-2000	±1℃	2L/min+>15L/min	40M	R-410A	2000W
JLTL-3000	±1℃	2L/min+>25L/min	43M	R-410A	3000W
JLFL-1500ANW	±1℃	1.5L/min+>15L/min	30M	R-410A	1000W-1500W
JLFL-2000ANW	±1℃	1.5L/min+>15L/min	40M	R-410A	2000W
JLFL-3000ANW	±1℃	2L/min+>20L/min	43M	R-410A	3000W
JLFL-6000ANW	±1℃	2L/min+>67L/min	59~61.5M	R-410A	6000W

Product Parameters

MODEL	JLFL-4000
Working Voltage	AC 3PH 380V
Working Current	2.7-11.5A
Working Frequency	50HZ
Rated Power	3850W
Refrigerant	R410a
Water Pump Voltage & Power	220v/750W
Max. Head	47M
Max. Flow Rate	2m³/h
Water Inlet/Outlet Port	Rp1/2"*Rp3/4"
Cooling Water Tank Max Capacity	45L
Chiller Dimensions (LWH)	7505701020mm
Outer Packaging Dimensions (LWH)	7805901160mm
Net Weight	88KG
Gross Weight	100KG

Note: The technical parameter information of the products on this site is for reference only and is subject to the final product as delivered.
