JLFL-12000 Fiber laser chiller-Fiber Laser Chiller-Dongguan Blue Penguin Machinery & Equipment Co., Ltd.-Blue Penguin

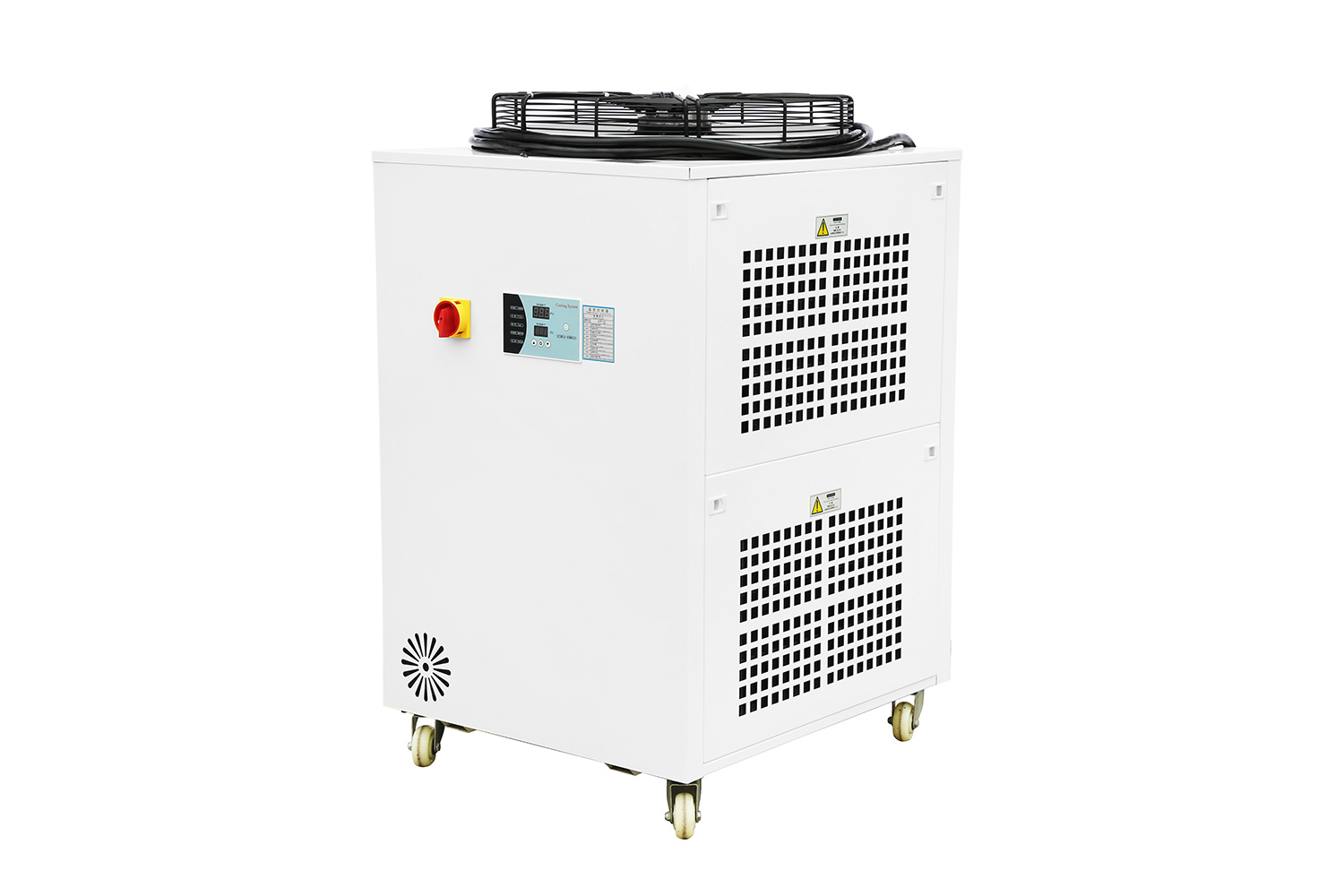

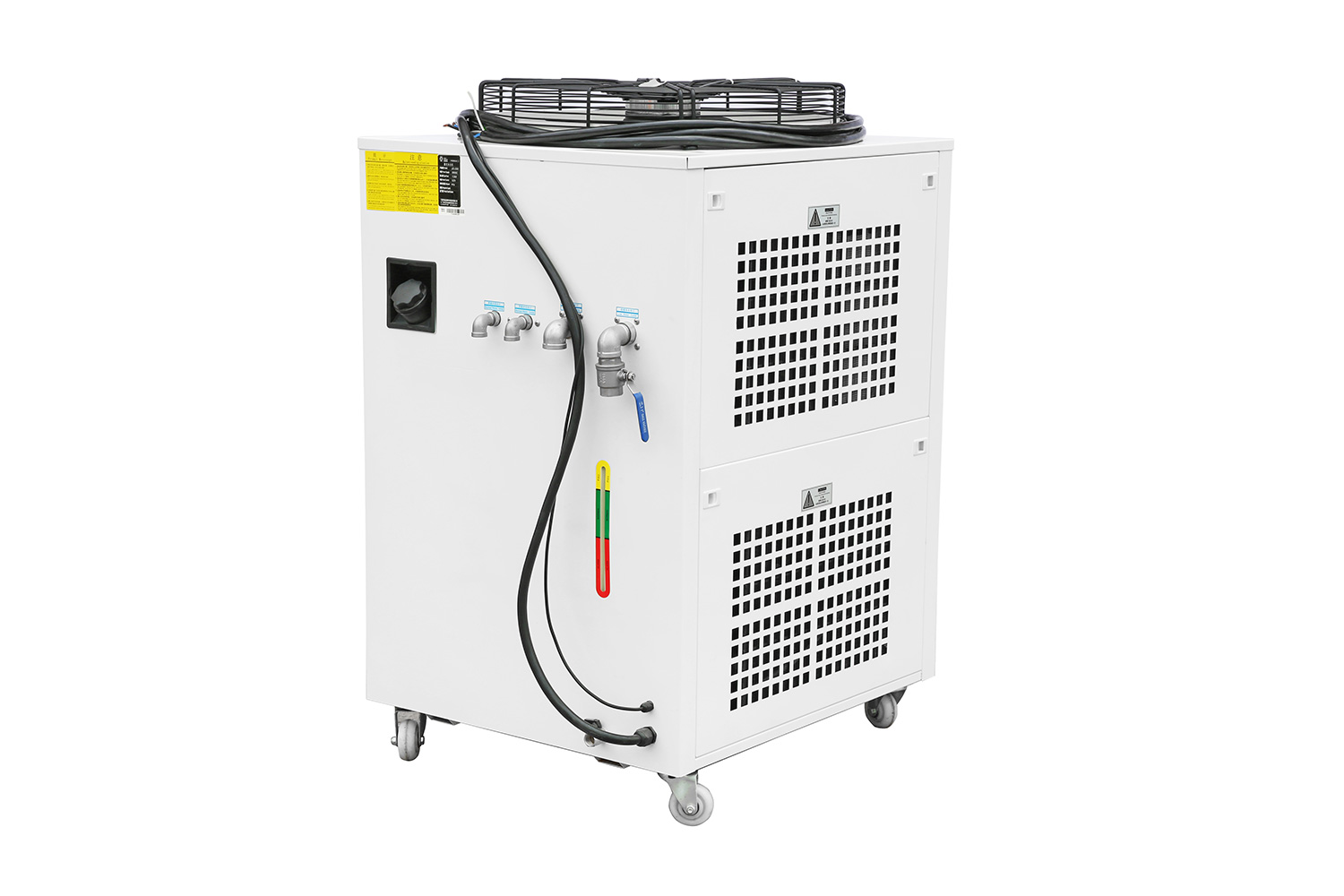

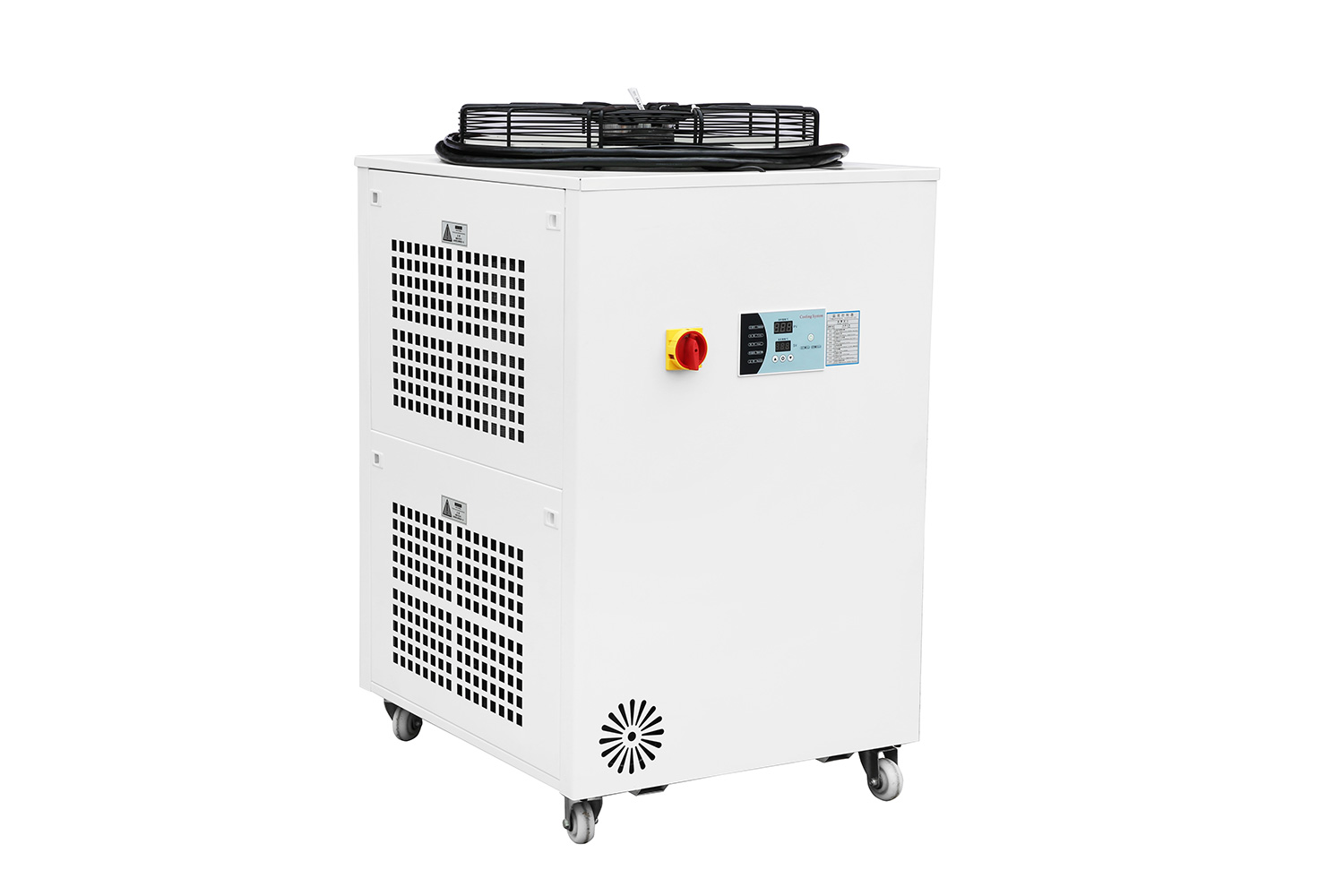

JLFL-12000 Fiber laser chiller

1. Specifically designed for 12000W fiber laser equipment, delivering excellent cooling performance.
2. Precise temperature control with switchable Constant Temperature and Smart modes to suit various applications.
3. Broad compatibility with major fiber laser brands in the market.
4. Optional eco-friendly refrigerant; ModBus-485 communication with multiple settings and fault display.
5. Comprehensive protection including compressor delay/overcurrent protection, water flow alarm, and high/low temperature alarms.
6. Global power compatibility; certified with ISO9001, CE, and RoHS.

Energy Saving
Over Temp Alarm
Overcurrent Protection For compressor
Flow Alarm
Dual Temp Control

JLFL/JLTL Fiber Laser Chiler Selection Guide:

MODEL	Temperature Precision	Rate Flow	Max.Pump Pressure	Refrigerant	Applicable fiber laser power
JLFL-1000	±1℃	1.5L/min+>10L/min	30M	R-410A	1000W
JLFL-1500	±1℃	1.5L/min+>12L/min	30M	R-410A	1500W
JLFL-2000	±1℃	1.5L/min+>20L/min	40M	R-410A	2000W
JLFL-3000	±1℃	1.5L/min+>25L/min	43M	R-410A	3000W
JLFL-4000	±1℃	2L/min+>40L/min	59~61.5M	R-410A	4000W
JLFL-6000	±1℃	1.5L/min+>50L/min	59~61.5M	R-410A	6000W
JLFL-8000	±1℃	2.5L/min+>65L/min	59~61.5M	R-410A	8000W
JLFL-12000	±1℃	2.5L/min+>100L/min	75~79M	R-410A	12000W
JLFL-20000	±1.5℃	5L/min+>150L/min	58~85M	R-410A	20000W
JLFL-30000	±1.5℃	10L/min+>300L/min	81~85M	R-410A	30000W
JLFL-40000	±1.5℃	10L/min+>400L/min	81~85M	R-410A	40000W
JLFL-60000	±1.5℃	10L/min+>600L/min	59.5~70M	R-410A	60000W
JLFL-80000	±1.5℃	H:10L/min L:>800L/min	H:54M L:70M	R-410A	80000W
JLFL-120000	±1.5℃	10L/min+>600L/min	70M	R-410A	120000W
JLFL-160000	±1.5℃	H:10L/min L:>800L/min	H:54M L:70M	R-410A	160000W
JLTL-1500	±1℃	2L/min+>12L/min	30M	R-410A	1000W-1500W
JLTL-2000	±1℃	2L/min+>15L/min	40M	R-410A	2000W
JLTL-3000	±1℃	2L/min+>25L/min	43M	R-410A	3000W
JLFL-1500ANW	±1℃	1.5L/min+>15L/min	30M	R-410A	1000W-1500W
JLFL-2000ANW	±1℃	1.5L/min+>15L/min	40M	R-410A	2000W
JLFL-3000ANW	±1℃	2L/min+>20L/min	43M	R-410A	3000W
JLFL-6000ANW	±1℃	2L/min+>67L/min	59~61.5M	R-410A	6000W

Product Parameters

MODEL	JLFL-12000
Working Voltage	380V
Working Current	5-27A
Working Frequency	50HZ/60HZ
Rated Power	11.5KW
Refrigerant	R410a
Water Pump Voltage & Power	1KW*1.2KW
Max. Head	1.85W
Max. Flow Rate	40M
Water Inlet/Outlet Port	Rp1/2"*Rp1"
Cooling Water Tank Max Capacity	60L
Chiller Dimensions (LWH)	8507101180mm
Outer Packaging Dimensions (LWH)	9007501350mm
Net Weight	165KG
Gross Weight	188KG

Note: The technical parameter information of the products on this site is for reference only and is subject to the final product as delivered.

JLFL-12000 Fiber laser chiller

Energy Saving

Over Temp Alarm

Overcurrent Protection For compressor

Flow Alarm

Dual Temp Control

JLFL Series The Cooling Expert for Fiber Lasers
