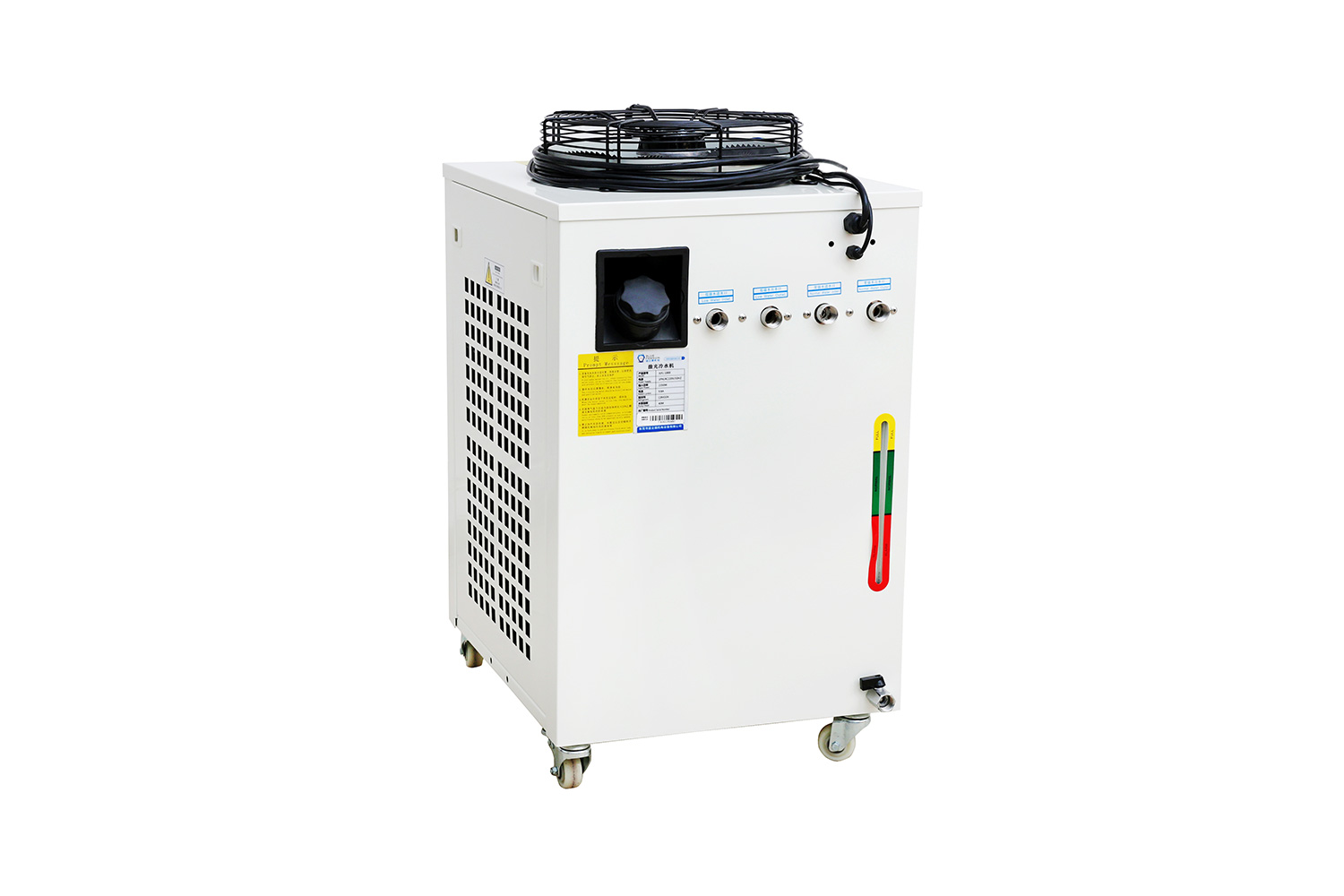

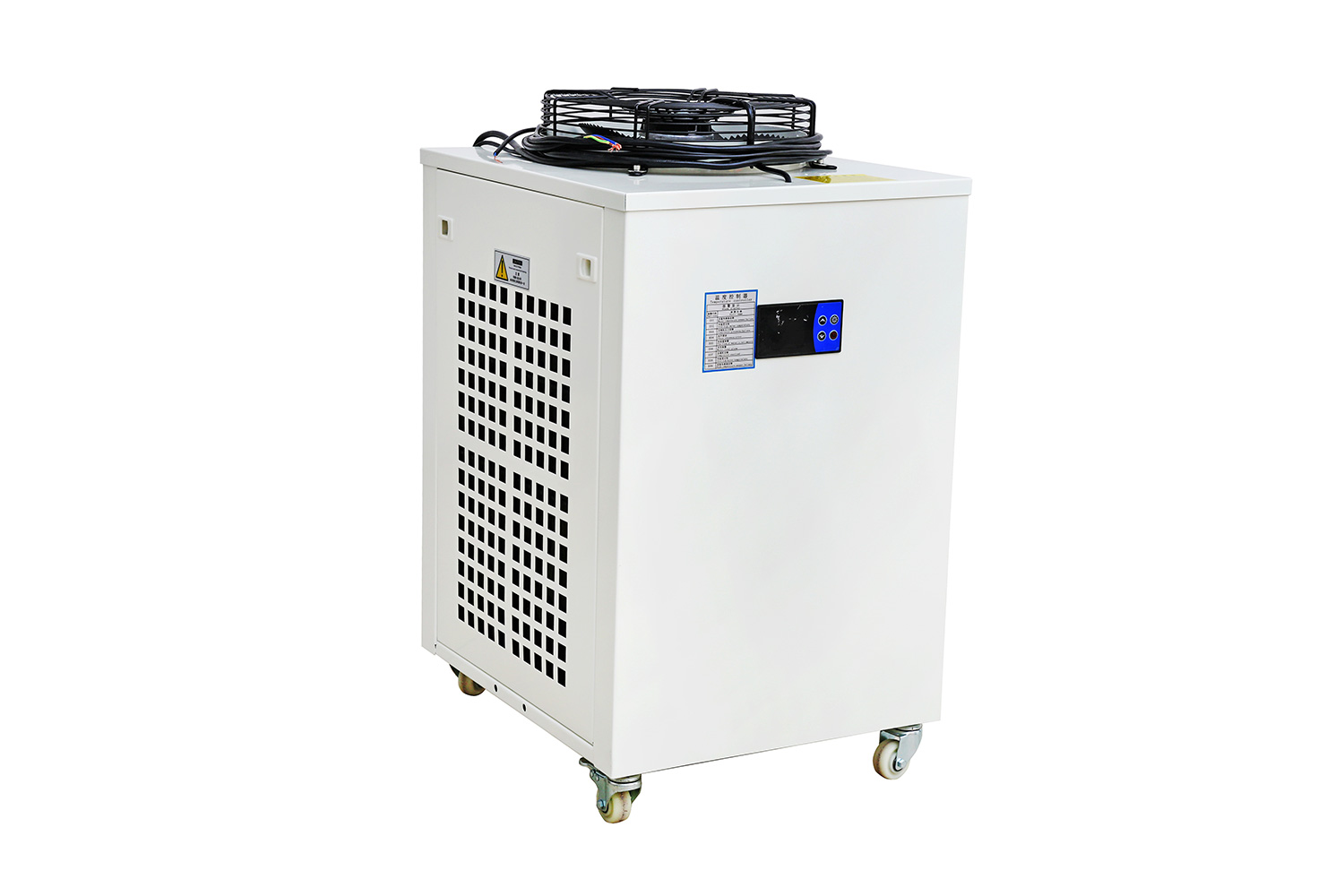

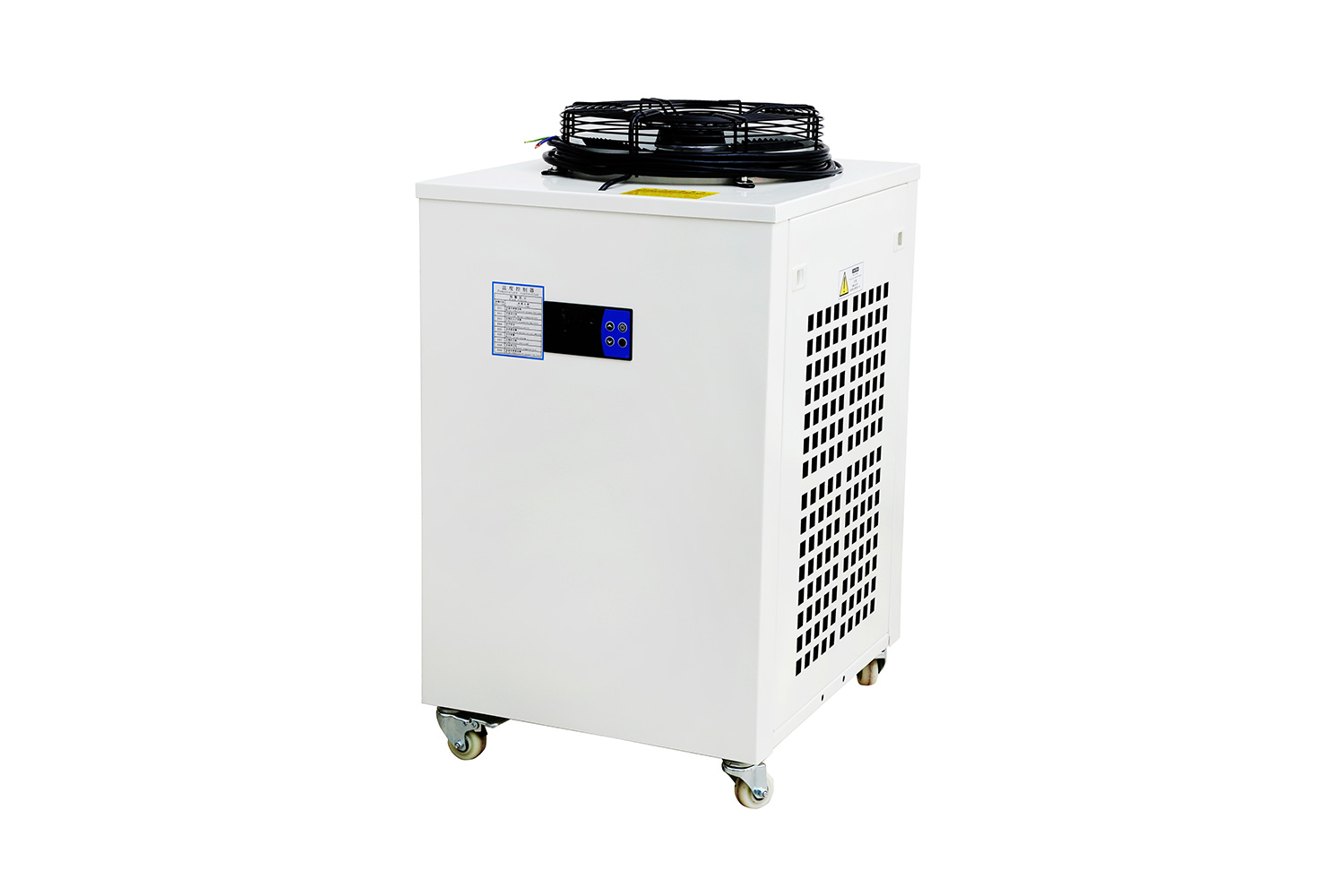

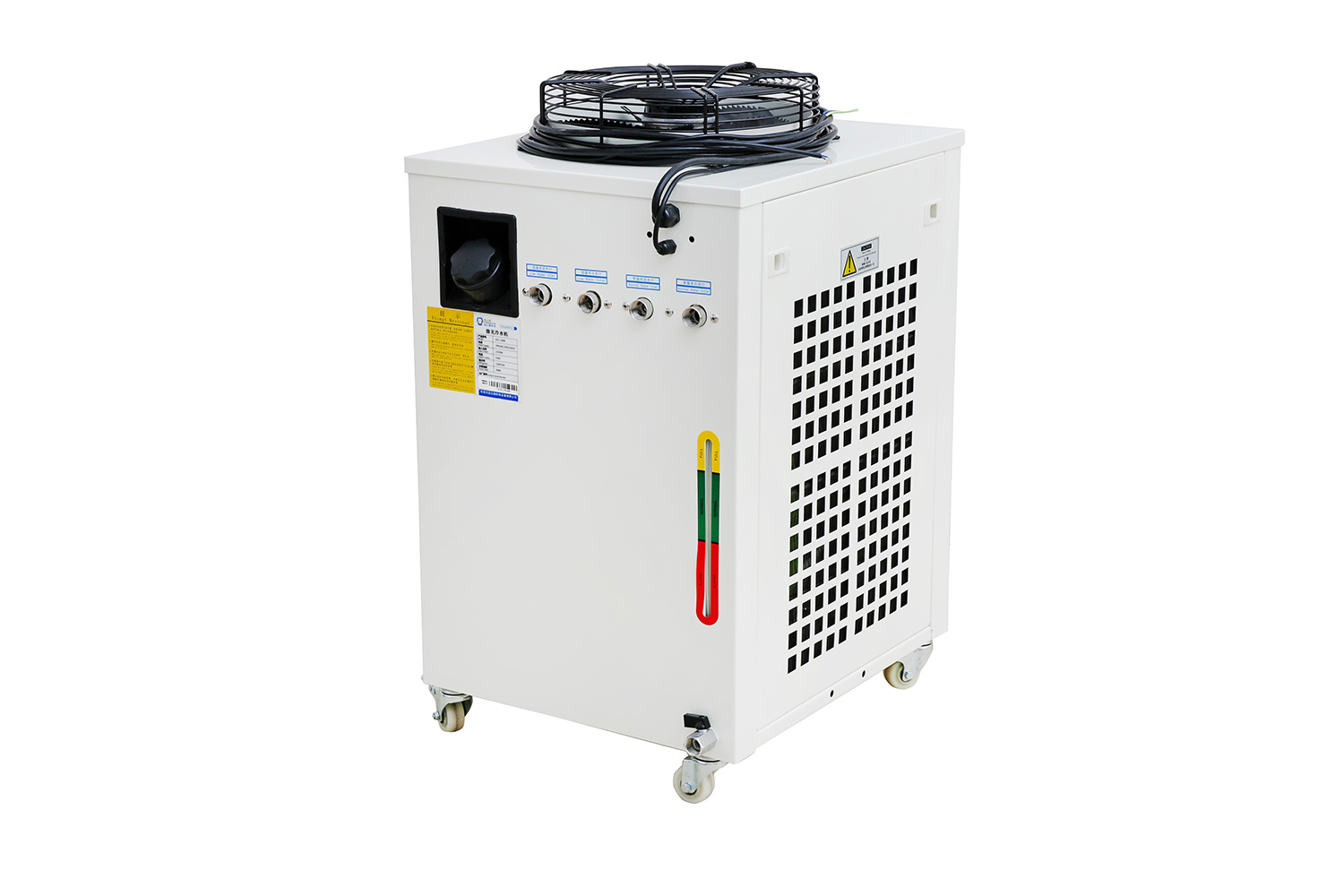

JLFL-1000 Fiber Laser Chiller

JLFL-1000 Fiber Laser Chiller

1. Using environment-friendly refrigerant, the refrigeration performance is stable;
2.Temperature control precision control range is small (±1°C);
3. In the power-on standby state, the antifreeze function can be started automatically;
4. lt has dual independent temperature control mode to meet the cooling temperature requirements of laser and laser cutting lenses;
5. With water flow alarm, ultra-high temperature and ultra-low temperature and sensor fault alarm functions;
6. lt has the function of compressor overcurrent and overload protection to extend the service life of the compressor.
  • Energy Saving

  • Over Temp Alarm

  • Overcurrent Protection For compressor

  • Flow Alarm

  • Dual Temp Control

JLFL/JLTL Fiber Laser Chiler Selection Guide:
MODEL Temperature Precision Rate Flow Max.Pump Pressure Refrigerant Applicable fiber laser power
JLFL-1000 ±1℃ 1.5L/min+>10L/min 30M R-410A 1000W
JLFL-1500 ±1℃ 1.5L/min+>12L/min 30M R-410A 1500W
JLFL-2000 ±1℃ 1.5L/min+>20L/min 40M R-410A 2000W
JLFL-3000 ±1℃ 1.5L/min+>25L/min 43M R-410A 3000W
JLFL-4000 ±1℃ 2L/min+>40L/min 59~61.5M R-410A 4000W
JLFL-6000 ±1℃ 1.5L/min+>50L/min 59~61.5M R-410A 6000W
JLFL-8000 ±1℃ 2.5L/min+>65L/min 59~61.5M R-410A 8000W
JLFL-12000 ±1℃ 2.5L/min+>100L/min 75~79M R-410A 12000W
JLFL-20000 ±1.5℃ 5L/min+>150L/min 58~85M R-410A 20000W
JLFL-30000 ±1.5℃ 10L/min+>300L/min 81~85M R-410A 30000W
JLFL-40000 ±1.5℃ 10L/min+>400L/min 81~85M R-410A 40000W
JLFL-60000 ±1.5℃ 10L/min+>600L/min 59.5~70M R-410A 60000W
JLFL-80000 ±1.5℃ H:10L/min L:>800L/min H:54M L:70M R-410A 80000W
JLFL-120000 ±1.5℃ 10L/min+>600L/min 70M R-410A 120000W
JLFL-160000 ±1.5℃ H:10L/min L:>800L/min H:54M L:70M R-410A 160000W
JLTL-1500 ±1℃ 2L/min+>12L/min 30M R-410A 1000W-1500W
JLTL-2000 ±1℃ 2L/min+>15L/min 40M R-410A 2000W
JLTL-3000 ±1℃ 2L/min+>25L/min 43M R-410A 3000W
JLFL-1500ANW ±1℃ 1.5L/min+>15L/min 30M R-410A 1000W-1500W
JLFL-2000ANW ±1℃ 1.5L/min+>15L/min 40M R-410A 2000W
JLFL-3000ANW ±1℃ 2L/min+>20L/min 43M R-410A 3000W
JLFL-6000ANW ±1℃ 2L/min+>67L/min 59~61.5M R-410A 6000W
Product Parameters
MODELJLFL-1000JLFL-1000
Working VoltageAC 1PH 220VAC 1PH 220~240V
Working Current1.5-8.2A1.5-8.6A
Working Frequency50HZ60HZ
Rated Power1.8KW2.0KW
RefrigerantR410a
Water Pump Voltage & Power220v/360W
Max. Head70M
Max. Flow Rate40L/min
Water Inlet/Outlet PortRp1/2"*Rp1/2"
Cooling Water Tank Max Capacity18L
Chiller Dimensions (L*W*H)570*465*820mm
Outer Packaging Dimensions (L*W*H)610*510*960mm
Net Weight42KG
Gross Weight48KG
Note: The technical parameter information of the products on this site is for reference only and is subject to the final product as delivered.
